Product Overview

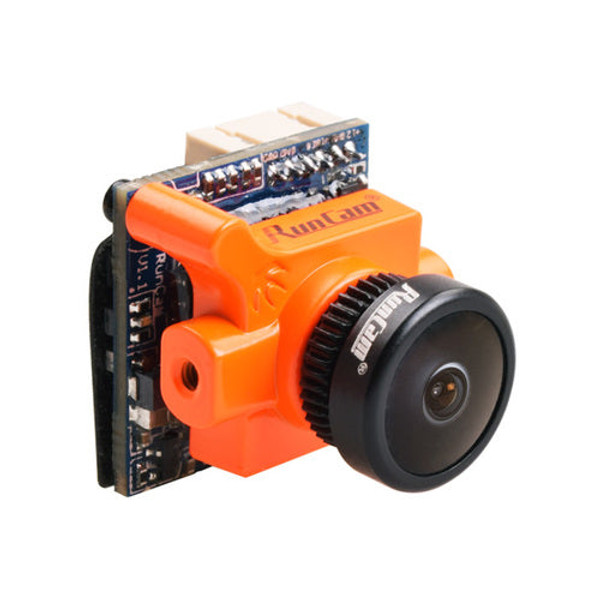

The RunCam Swift 2 Micro is only 19x19mm and has an integrated OSD with low voltage alarm, suitable for many FPV frames.
Specifications
| Model | RunCam Micro Swift 2 |
| Image Sensor | 1/3" SONY Super HAD II CCD |
| Horizontal Resolution | 600TVL |
| Lens | 2.3mm FOV 160° |
| Signal System | NTSC |
| One Touch Scene Setting | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight |
| S/N Ration | >60dB(AGC OFF) |
| Electronic Shutter Speed | PAL: 1/50~100,000; NTSC:1/60 ~ 100,000 |
| AutoGain Control(AGC) | YES |
| Min.illumination | 0.01Lux/1.2F |
| WDR | D-WDR |
| DNR | 2DNR |
| Day/Night | Color / Auto / B&W |
| Power | DC 5 to 36V |
| Working Current | 12V@60mA / 5V@130mA |
| Net weight | 5.6g |
| Dimensions | 19mm * 19mm * 19mm |
Includes
- 1 X Camera
- 1 X 1.25mm 3pin to 1.25mm 3pin FPV silicone cable
- 1 X 1.25mm 3pin to 1.0mm 3pin FPV silicone cable
- 1 X 5D-OSD Menu Cable
- 1 X Mounting Hardware Set.
- 1 X Manual
Downloads
Download the user manual here.
