Product Overview
Model: RunCam Swift Mini
Image Sensor: 1/3 "SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.5mm / 2.3mm / 2.1mm
Signal System: PAL / NTSC
S / N Ration:> 60dB (AGC OFF)
Electronic Shutter Speed PAL: 1/50 to 100,000; NTSC: 1/60 to 100,000
AutoGain Control (AGC): YES
Back light compensation (BLC): YES
Min.illumination: 0.01Lux / 1.2F
WDR: D-WDR
DNR: 2DNR
Day / Night: Color / Auto / B & W
Power: DC 5 to 36V
Net weight: 12g
Dimensions: 22.3mm * 22mm * 27mm

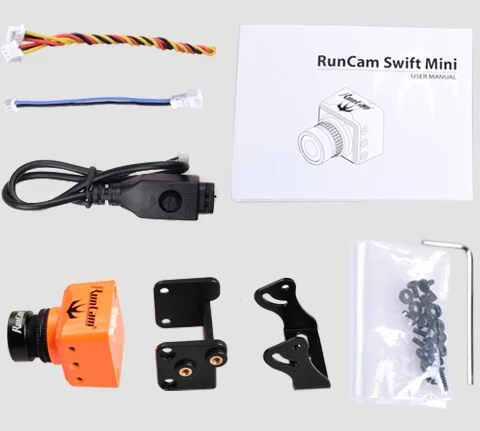

package
1x Camera
1x Aluminum bracket
1x ABS bracket
1x Set of screws
1x 5D-OSD menu cable
1x 3pin FPV silicone cable
1x 2pin extension cord for menu cable
1x Manual

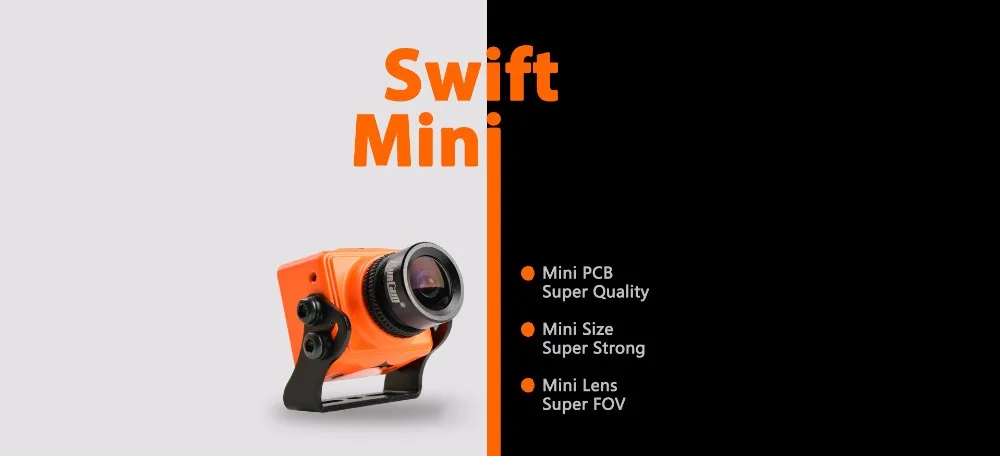

![swiftmini-1](https://cdn11.bigcommerce.com/s-nmlj7kkgz5/products/1863/images/2925/UTB8WyiiXT_IXKJkSalUq6yBzVXaa__39075.1651512500.1280.1280.jpg?c=1)

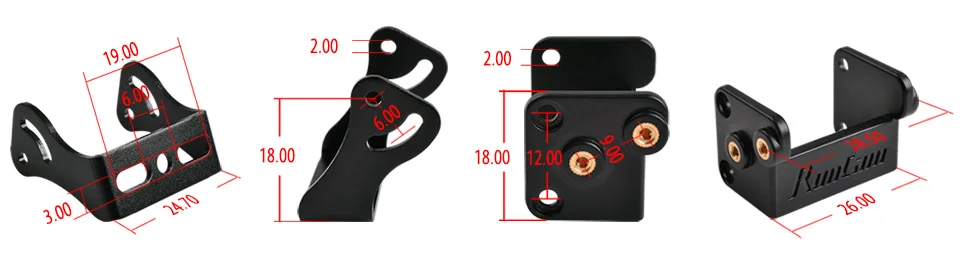

![bracket-size-2](https://cdn11.bigcommerce.com/s-nmlj7kkgz5/products/1863/images/2926/UTB8YMvkeyaMiuJk43PTq6ySmXXai__93889.1651512501.1280.1280.jpg?c=1)

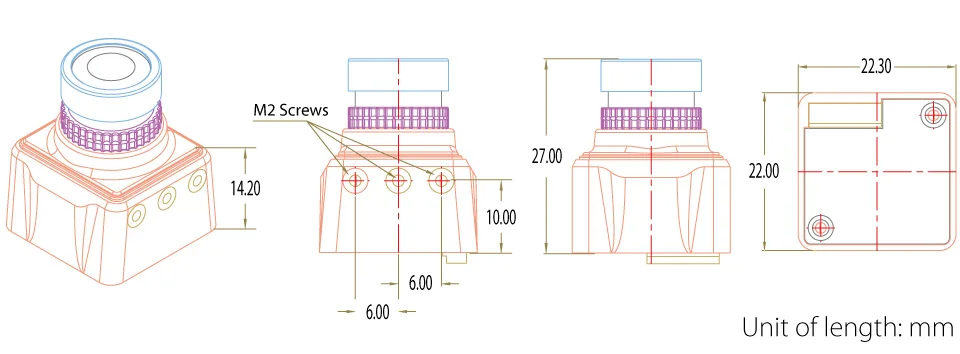

![dimension_figure-3](https://cdn11.bigcommerce.com/s-nmlj7kkgz5/products/1863/images/2927/UTB8bgSJfxHEXKJk43Jeq6yeeXXaX__77666.1651512503.1280.1280.jpg?c=1)
![accessary-4](https://cdn11.bigcommerce.com/s-nmlj7kkgz5/products/1863/images/2928/UTB8b3SJfxHEXKJk43Jeq6yeeXXaV__73301.1651512505.1280.1280.jpg?c=1)
Product description
Color:Orange 2.5mm
Feature
Wide Voltage:DC 5 to 36V (2S-5S battery)
Tiny size compatible with small frame
Specification:
Dimensions: 22.3mm(L)*22mm(W)*27mm(H)
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.5mm
FOV(Angle of Field): 130°
Signal System: NTSC
S/N Ration: >60dB(AGC OFF)
Electronic Shutter Speed: NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color/Auto/B&W
Power: DC 5 to 36V
Net weight: 12g
Package includes:
1 * Camera
1 * Aluminum bracket
1 * ABS bracket
1 * 5D-OSD menu cable
1 * 3pin FPV silicone cable
1 * 2pin extension cord for menu cable
1 * Set of screws
1 * Manual
