Product Overview
Specification (user manual):
Brand name: Matek Systems
Item name:Â FCHUB-VTXÂ
Weight:Â 14g (w/ MMCXÂ whip antenna)

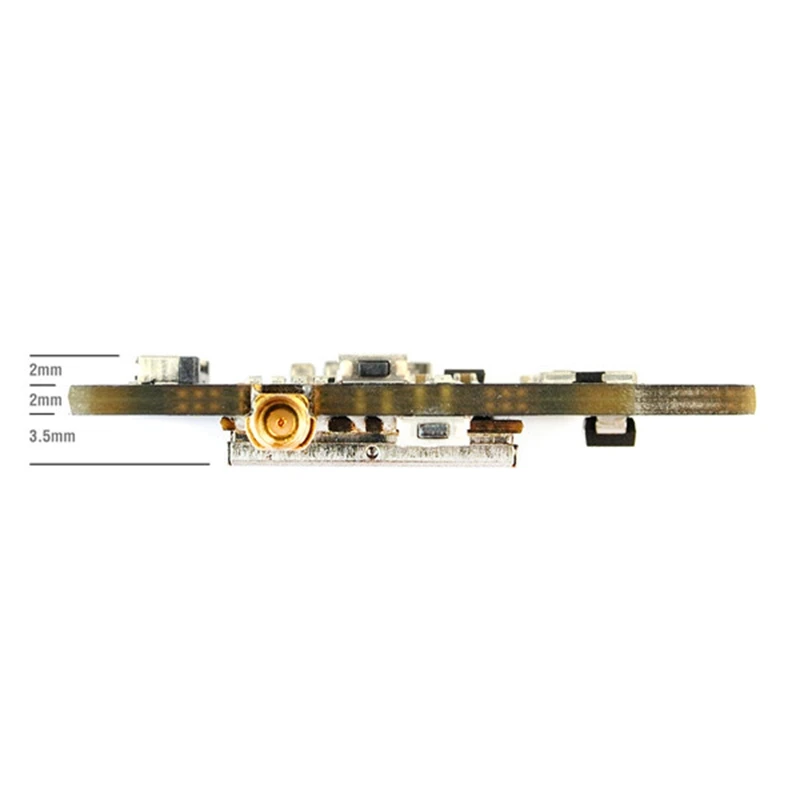

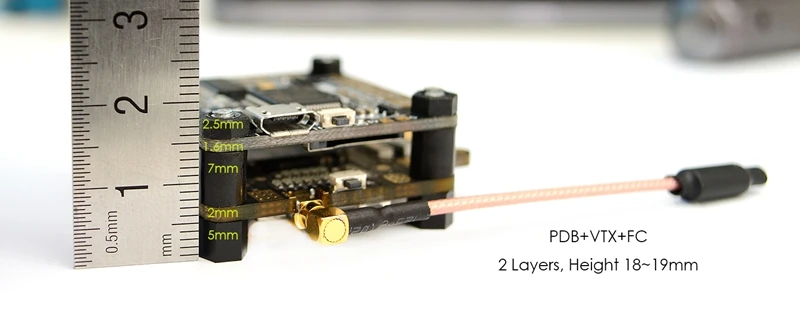

Size: 36*45*7mm w/30.5mm mounting
Input voltage: 6~27V(2~6S LiPo)
PDB: 4*30A (4*46A, 5 seconds)
Current Sensor: 184A (Scale 179)
BEC Output: 5V/1A for Camera or FC-
VTX: 40 standard 5.8G channels, A/B/E/F/R band-
VTX Output Power: 25, 200, 500mW switchable

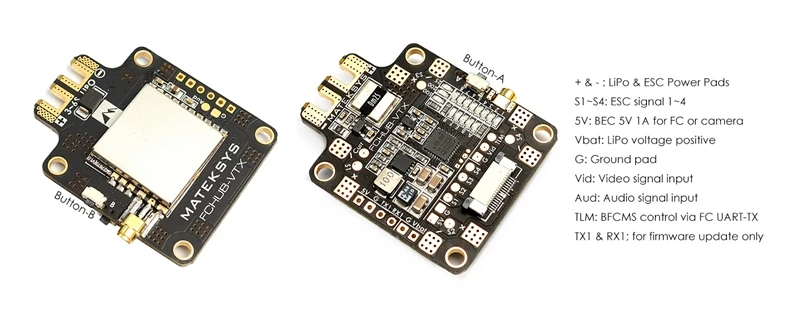

Traditional button+LED control of frequency and power
BFCMS (BFOSD & LUA Script) control via FC- UART _TX

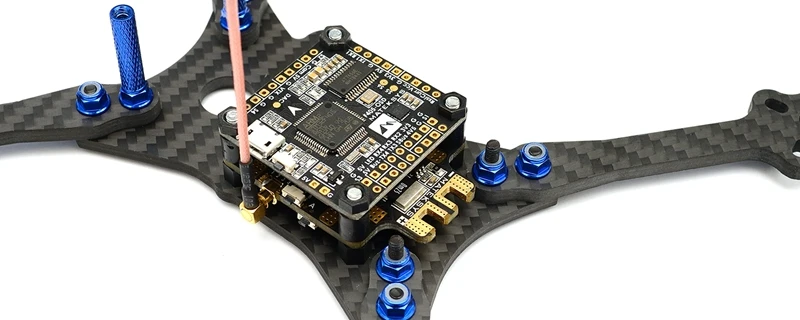

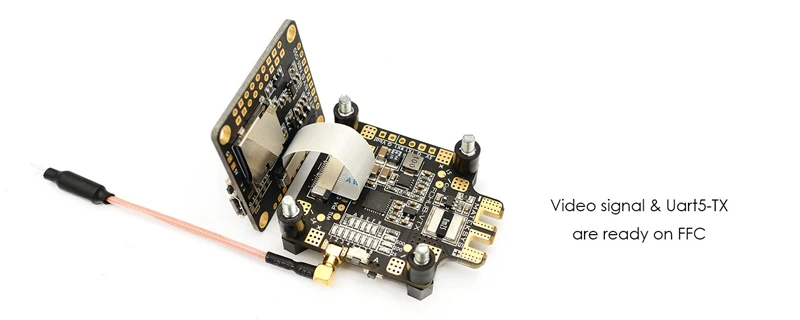

Video signal & TX5 are ready on FFC connected with MATEK FC- F405-OSD
Silicon wires connection with other brands FC-
Firmware upgradeable
 VTX Power Consumption: 3.1W Max. @ 500mW
Video Input Impedance: 75 Ohm
Audio Subcarrier Frequency: 6.5 MHz
RF Connector: MMCX
Video Format: NTSC/PAL

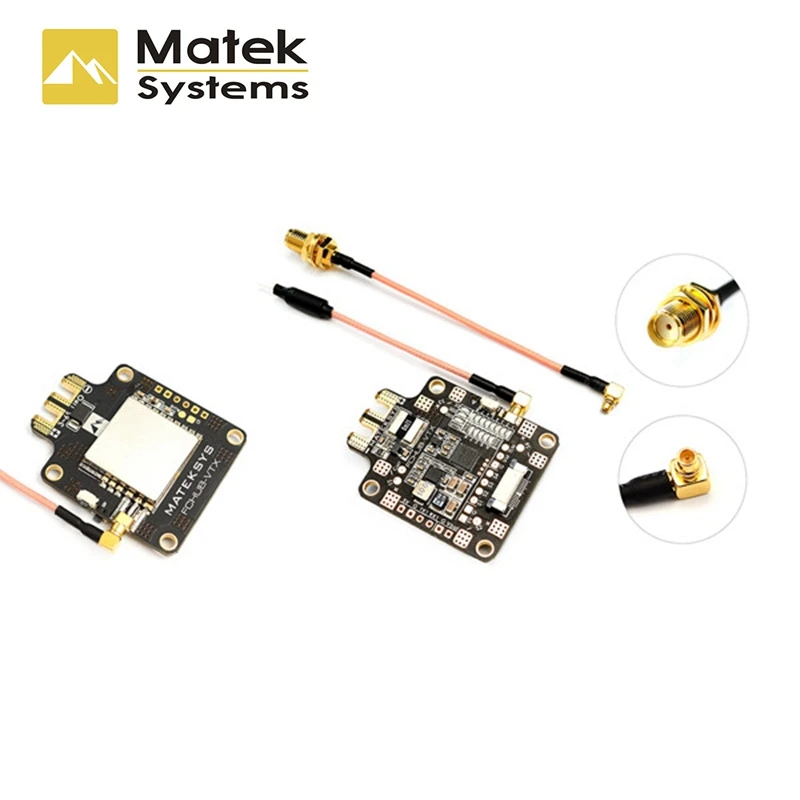

Pacakge included:
1* FCHUB-VTX board

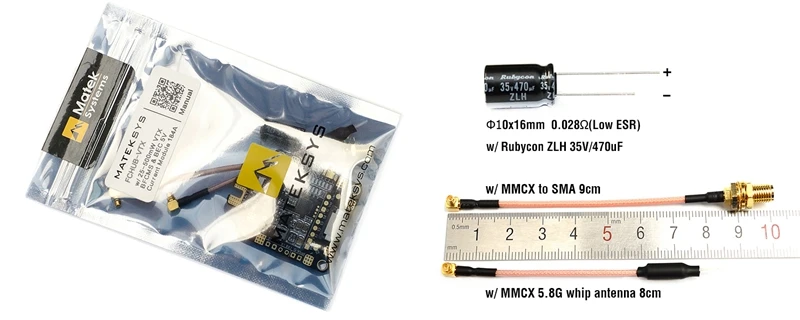

Pacakge included:
1* FCHUB-VTX board
1* MMCX to SMA Female, RG178 cable 9cm
1* MMCX 5.8G whip antenna, RG178 8cm
1* Rubycon ZLH 35V/470uF Low ESR capacitor
