Product Overview

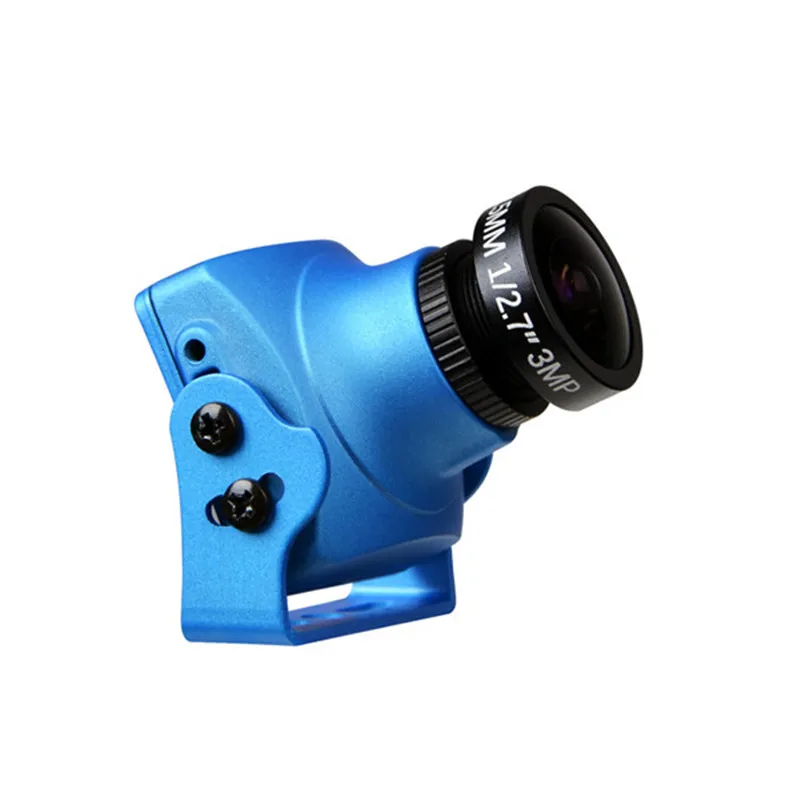

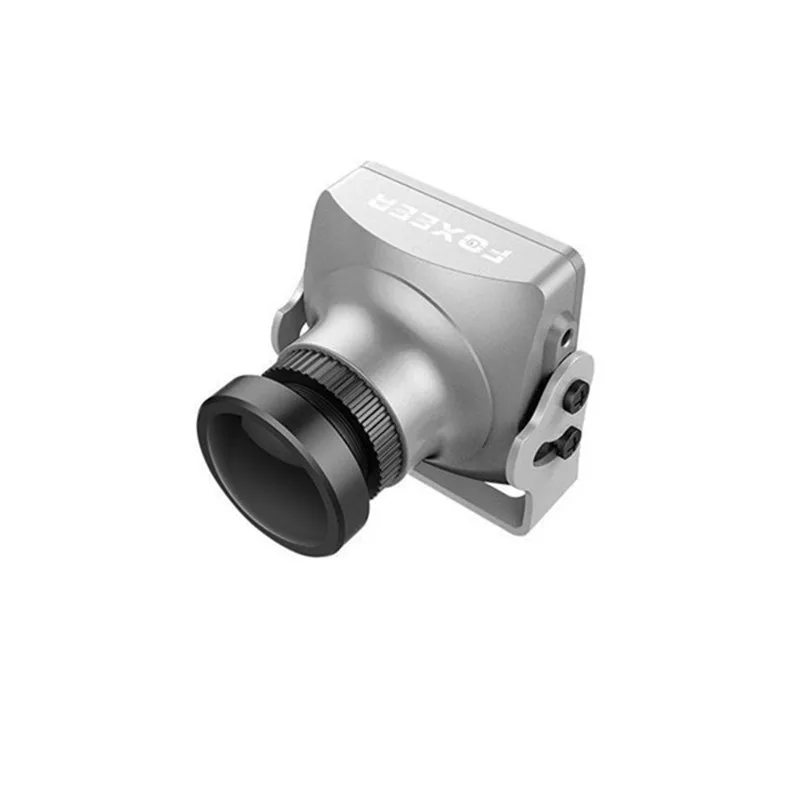

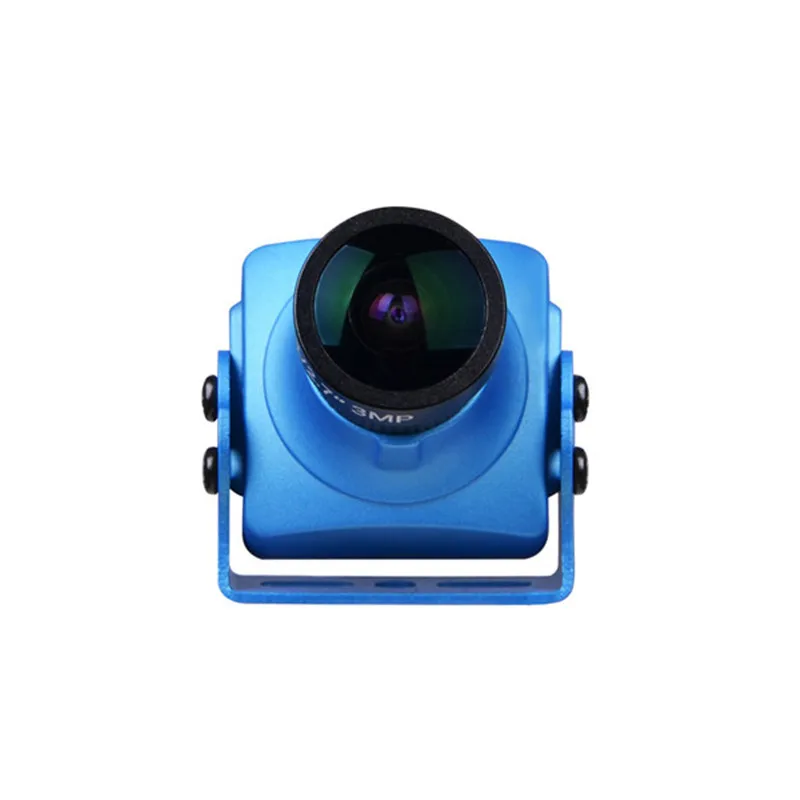

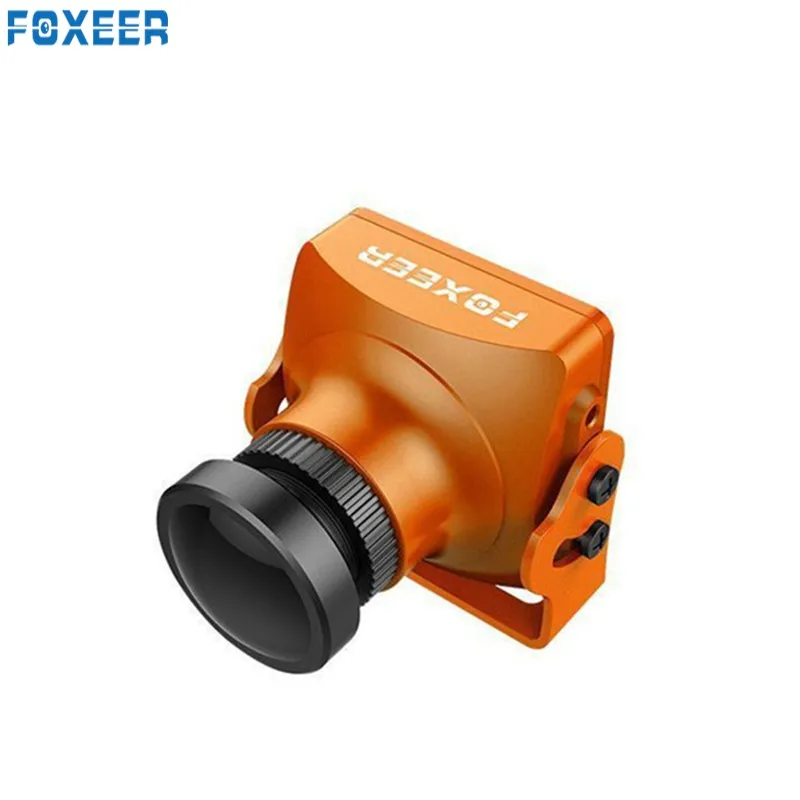

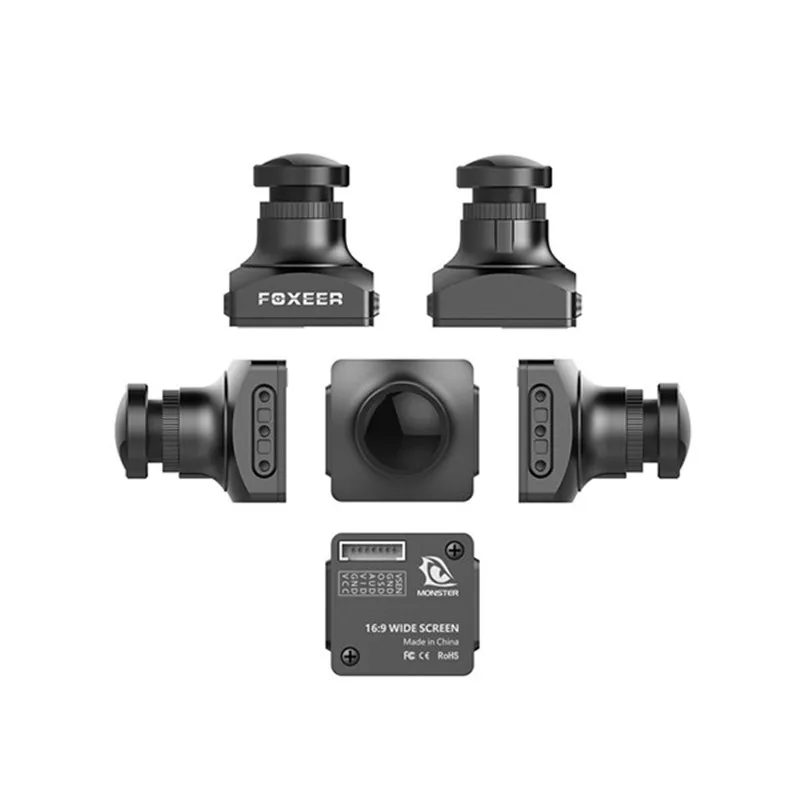

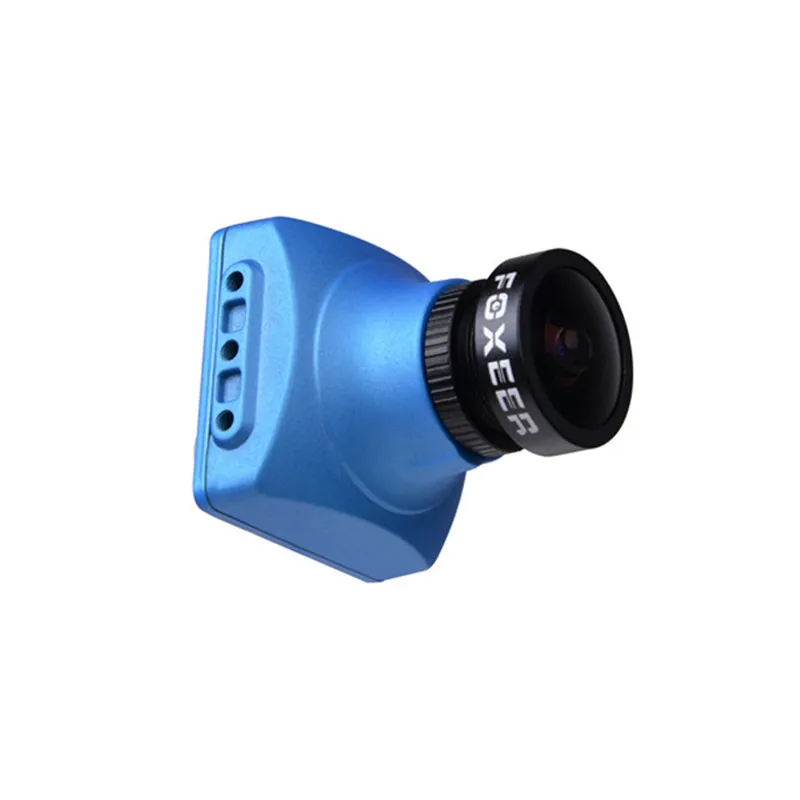

Foxeer Monster V2 FPV camera is upgraded to alloy case, easier for installation, add OSD and Audio, more vivid image,
better WDR, low latency as well as 5~40V wide voltage make it is perfect camera for 16:9 Goggles and monitors.
Specification:
| Model | Foxeer MonsterV2 |
| Image Sensor | 1/2.9” CMOS |
| Min. illumination | Color: 0. 05Lux(F1.2,50IRE,AGC ON); BW: 0.001Lux(F1.2,50IRE,AGC ON) |
| CVBS | 16:9 |
| WDR | Support |
| Audio | Support |
| Resolution | 1200TVL |
| Built in OSD | Support |
| Output Resolution | 1200TVL |
| Camera system | PAL/NTSC switchable |
| Total Pixels | 1280(H)×960(V) |
| Min. illumination | Color: 0. 05Lux(F1.2,50IRE,AGC ON); BW: 0.001Lux(F1.2,50IRE,AGC ON) |
| Shutter Speed (CCD IRIS) | PAL: 1/50~1/100,000s NTSC: 1/60~1/100,000s |
| 2D-DNR | 0 to 100 |
| 3D-DNR | 0 to 100 |
| SENSE-UP | Support |
| Image Adjustment | Support |
| BLC/HLC | Support |
| WDR | In built |
| S/N | > 50dB |
| White Balance | Auto |
| Day / Night Shift | Auto/ External control/ Color/ B&W |
| Private shading | Support |
| Lanuage | Chinese/English |
| Video Out | 1.0Vp p, 75ohm |
| Input Power | 5V to 40V |
| Working Temperature | -20degree~60degree |
| Working Humidity | Relative humidity < 90% |

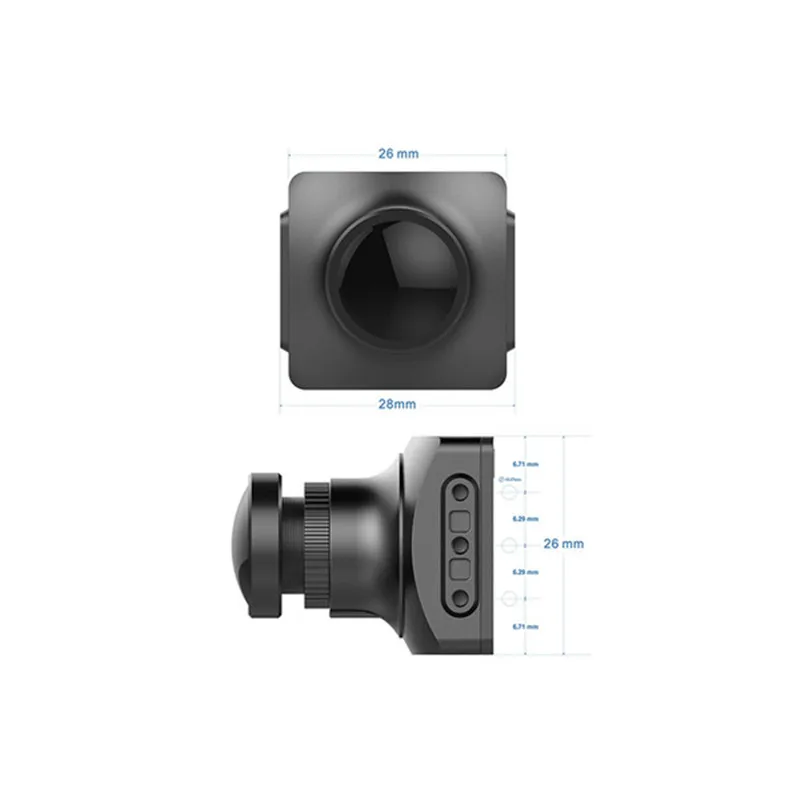

| Dimension | 26mm*26mm |

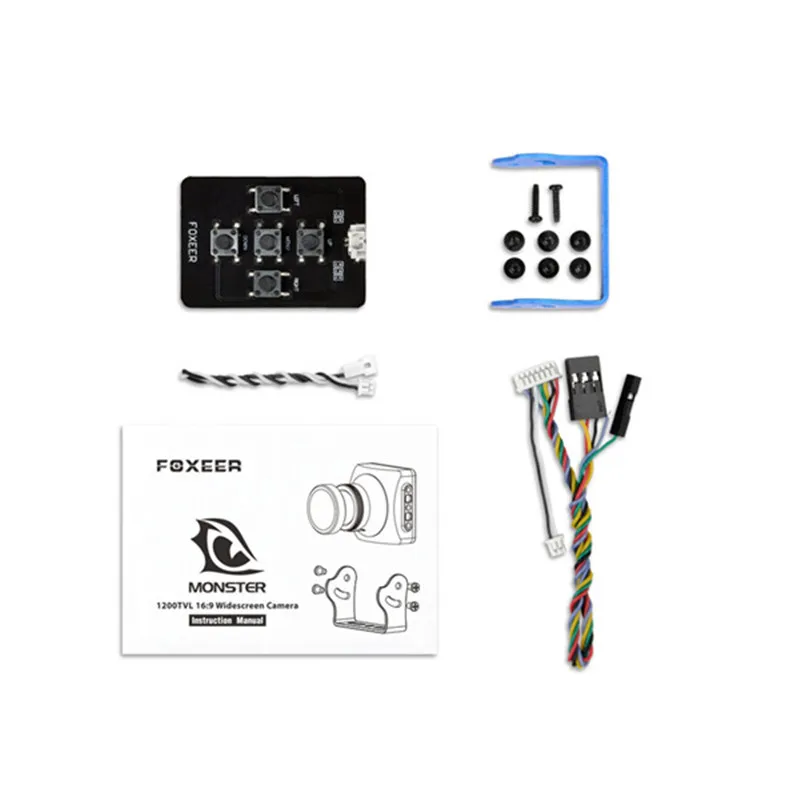

Package included:
1X Foxeer Monster V2 (Blue)
1X OSD board
1X Servo Cable

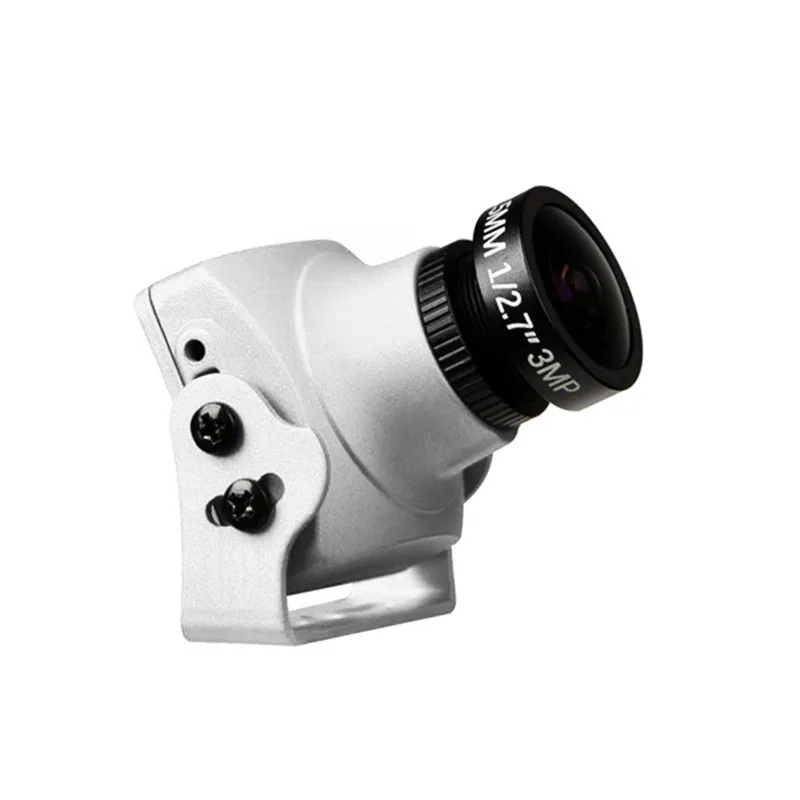

1X bracket
1×Screws
