Product Overview
Item specifics
- Brand Name:EACHINE
- Material:Metal,Carbon Fiber
- Package Includes:Original Box,Batteries,Operating Instructions,Charger,Remote Controller,Camera
- Remote Control:Yes
- State of Assembly:Ready-to-Go
- Remote Distance:about 200 m
- Dimensions:440 x 300 x 100mm
- Power Source:Electric
- Charging Voltage:as description show
- Charging Time:as description show
- Features:Model
- Warranty:NO
- Warning:NO
- Plugs Type:as description show
- Motor:Brushless Motor
- Controller Battery:6V 1.5AA*4
- Control Channels:12 Channels & Up
- Action Time:About 12 minutes
- Controller Mode:MODE1,MODE2
- Age Range:
- Model Number:Eachine Wizard X220
- Type:Helicopter
- Aerial Photography:No
- Package Includes:as description show
Product Description

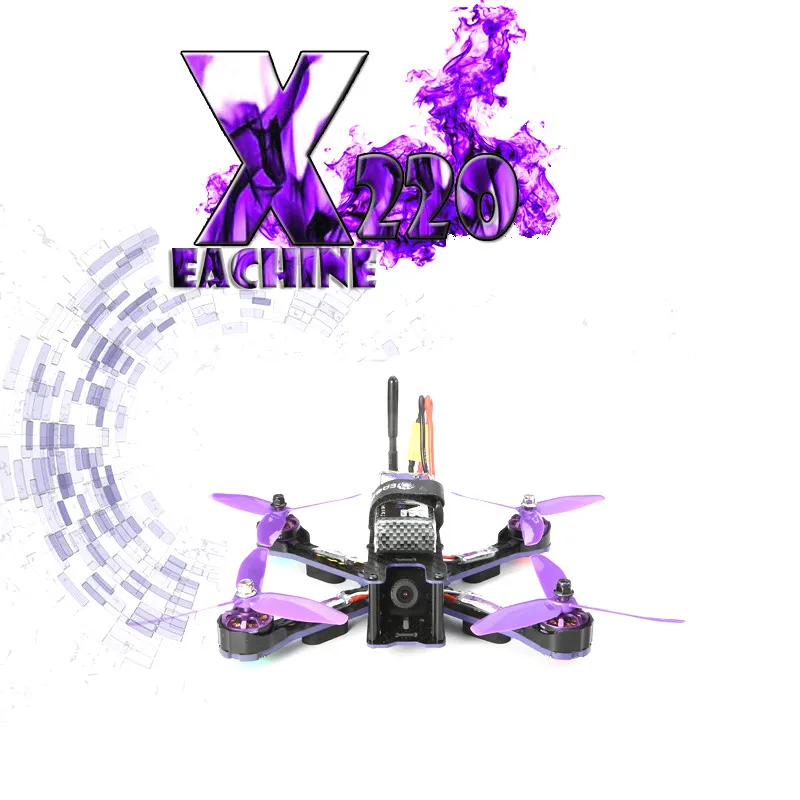

Eachine Wizard X220 FPV Racing Drone Blheli_S F3 6DOF 5.8G 48CH 200MW VTX 700TVL Camera w/ FlySky I6 Remote Control RTF
For more information of Eachine Wizard X220, please refer to Banggood BLOG at https://blog.banggood.com/eachine-wizard-x220-review-50401.html
| Item | Specification | Features |

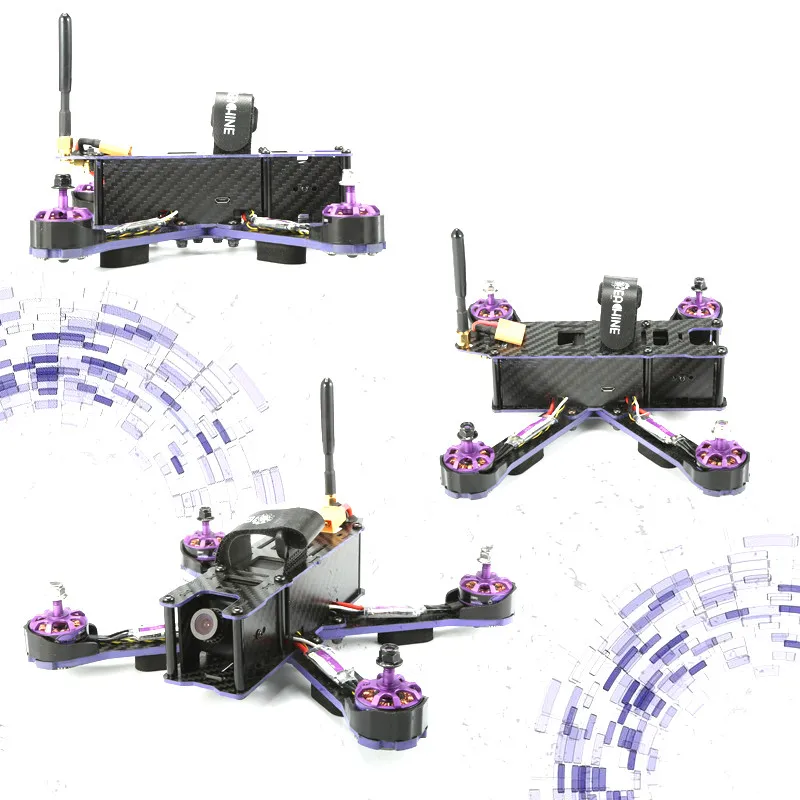

| Eachine Wizard X220 |
Wheelbase: 220mm GMachine arm: 4mm carbon fiber Flying times: 12 minutes Weigh: 484g (with battery) Take off weigh: 535g Package size: 440 x 300 x 100mm Package weigh: 1325g |
Compatible with max 5 inch propeller Compatible with 2206, 2208 motor Can be used with 4S/3S battery With Seft-protection function With direction indicator LED Inclined motor base design, fast speed Removable protection motor base |

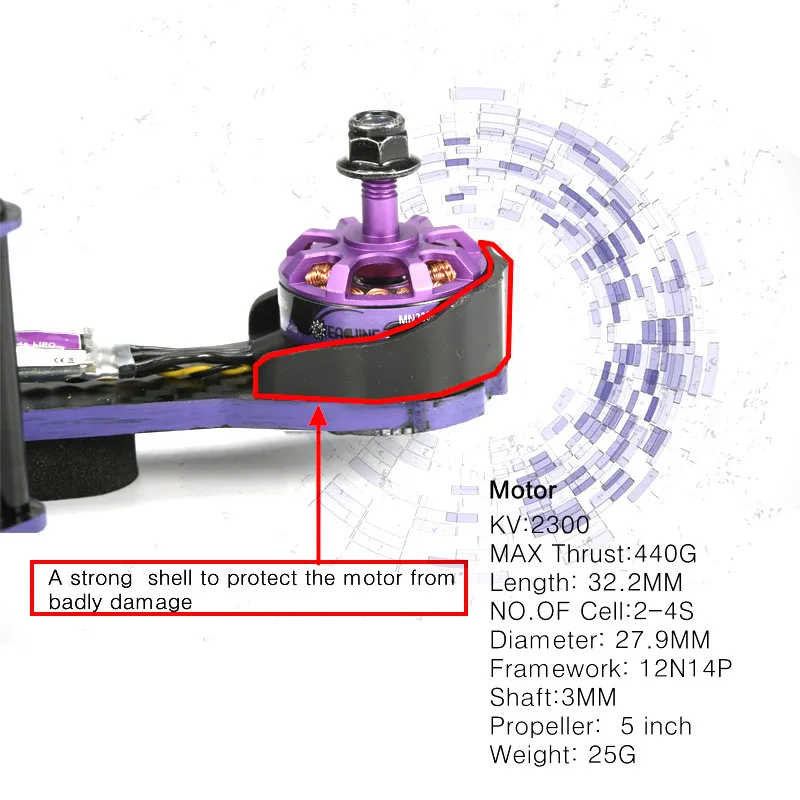

| Eachine MN2204 2300KV Motor |
KV : 2300 MAX thrust: 440g Length: 32.2mm NO.OF cell : 2-4S Diameter : 27.9mm Framework : 12N14P Shaft : 3mm Propeller : 5 inch Weight: 25g |
|

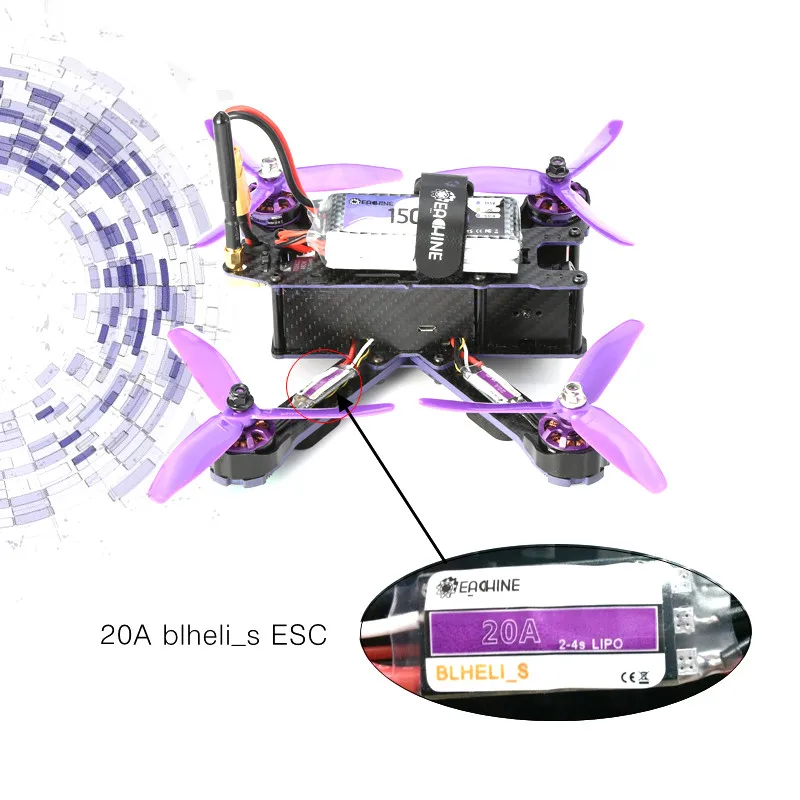

| Eachine 20A BLHELI_S ESC |
Item name : 20A BLHELI_S ESC Con.Current : 20A Pe,ak Current(10s) : 25A Input Voltage : 2-4S BEC : No Programming : YES Firmware : Blheli_S Weight :7.9g Size(PCB) : 27*12mm |
|

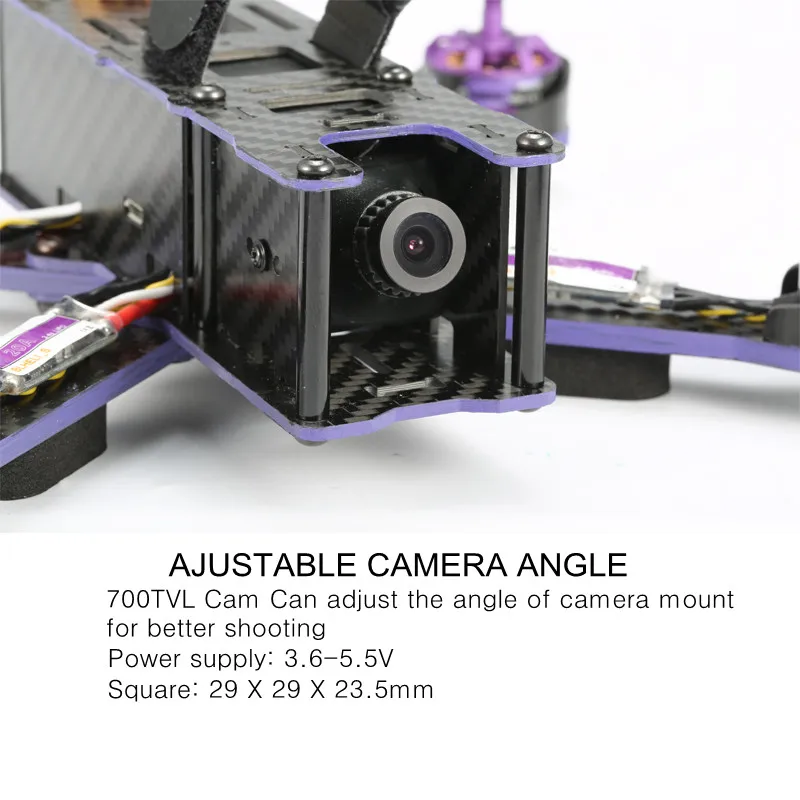

| 700TVL Camera |
Power supply : 3.6-5.5V (powered off TX) Power consumption : 60mA @5V Imager : 1/3” CMOS, 700TVL Angle : 127° diagonal FOV, 110° horizontal FOV FPV tuned light handling System : PAL Lens : 2.8mm IR coated FOV : 127°diagonal 110°horizontal (ideal for fixed camera) Operation temperature : -20 to 70°C Square : 29 X 29 X 23.5mm Lens extrude (LxDia) : 15mm X 14mm Weight : 12g |
|
| 5.8G 200mw 48ch Transmitter |
Item NO.: TS5823S Modulate : Wideband FM Modulate Video Format : NTSC/PAL Output Impedance : 50 Ohm Output Power : 23-24dBm Channel:48 CH Operating Voltage : 7V-24V Supply Current : 190mA Operating Temperature : -10~85℃ Video Ba,nd Width : 0~8.0 MHz Audio Carrier Frequency : 6.5 MHz Video Input Level : 0.8~1.2 Vp-p Video Input Impedance : 75 Ohm Audio Input Level : 0.5~2.0 Vp-p Audio Input Impedance : 10K Ohm Connector: RP-SMA Female (Inner needle) Antenna Connector: RP-SMA Male (Inner hole) Dimension: 40mm x 23mm x 8mm Weight: 7.3g
|
|
| Flight controller |
NAZE32 6DOF REV6 |
|
| FlySky I6 2.4G 6CH remote control |
Channels : 6 Channels Model type : Glider/Heli/Airplane
RF range : 2.40-2.48GHz
Bandwidth : 500KHz
Ba,nd : 142
RF power : less than 20dBm
2.4ghz system : AFHDS 2A and AFHDS
Code type : GFSK
Sensitivity : 1024
Low voltage warning : less than 4.2V
DSC port : PS2; Output:PPM
Charger port : No
ANT length : 26mm*2 (dual antenna)
Weight : 392g
Power : 6V 1.5AA*4
Display mode : Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight.
Size : 174x89x190mm
On-line update : yes
Color : Black
Certificate : CE0678, FCC
Model memories : 20
Control range: 500m
|
|
| Flysky 2.4G 6CH FS-iA6B Receiver |
Channel: 6 Frequency Range: 2.4055--2.475GHZ
Ba,nd Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
|
|
| Battery |
Capacity(mAh) : 1500 Cells (s): 3
Weight (g): 120
Length(mm): 89
Width(mm): 19
Height(mm): 35
Connector: XT60
|
|
| Kingkong 5040 3-Blade Propeller |
Color: purple Quantity: 10 Pairs Mounting Hole: 5mm Weight: 137g Size: 140*140*65 mm |
|
Eachine Wizard X220 English manual.

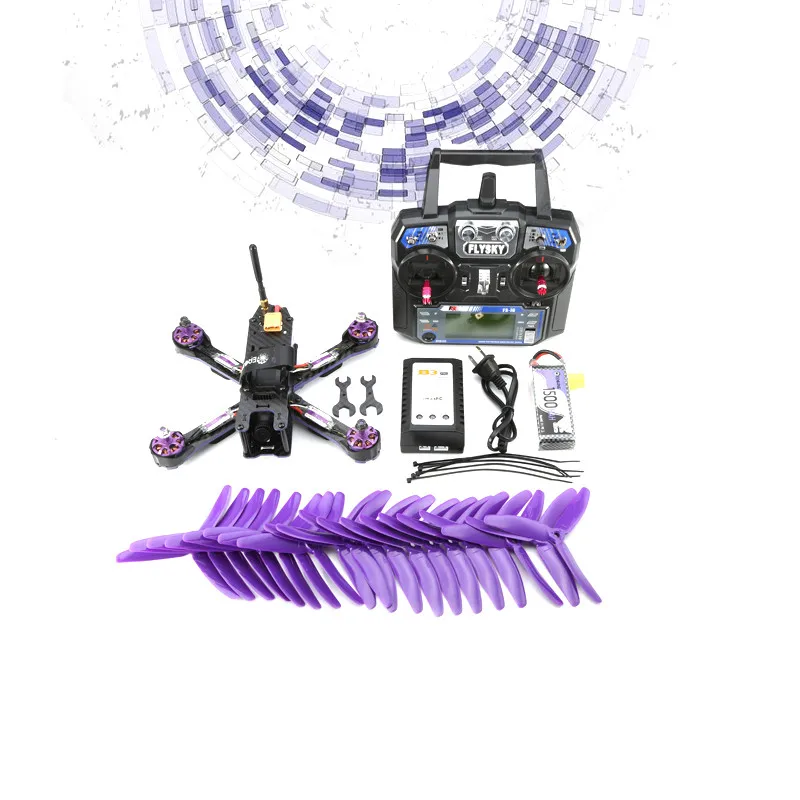

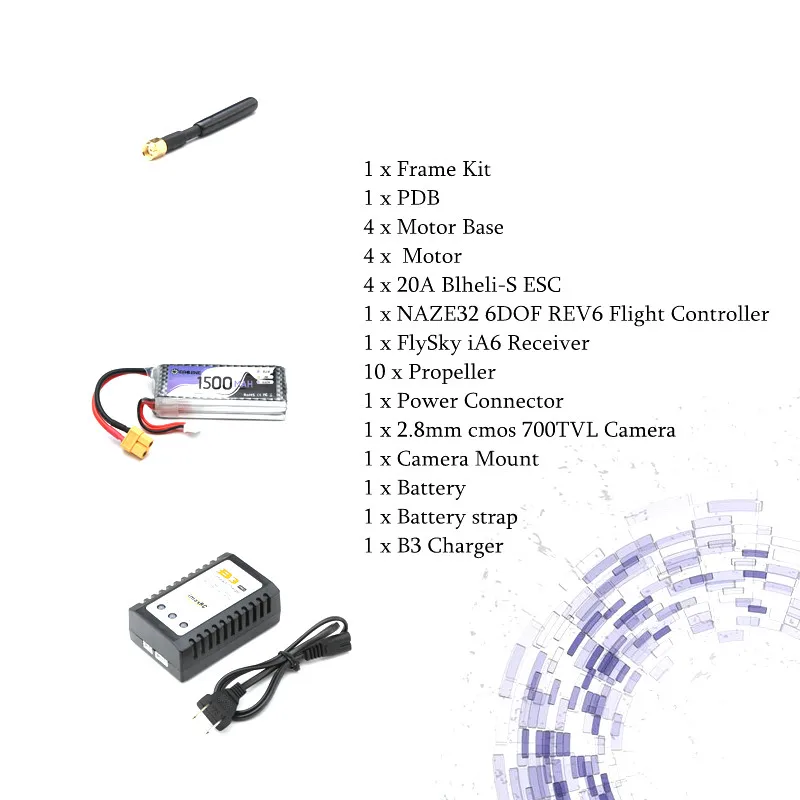

Package included:
1 x Eachine V-tail 210 FPV Drone
1 x Flysky I6 2.4G 6CH remore control
1 x Flysky iA6B receiver
2 x Eachine MN2204 KV2300 brushless motor CW
2 x Eachine MN2204 KV2300 brushless motor CCW
4 x Eachine 20A BLHELI_S ESC
10 x Kingking 5040 3-blade propeller purple CW
10 x Kingking 5040 3-blade propeller purple CCW
1 x NAZE32 6DOF REV6
1 x 700TVL camera
1 x 5.8G 48CH 200mw transmitter
1 x 3S 11.1V 1500mah 25C XT60 battery
1 x B3 charger
1 x Antenna
1 x Battery strap
2 x Wrench
