Product Overview
Specificaiton:
Brand name: Eachine

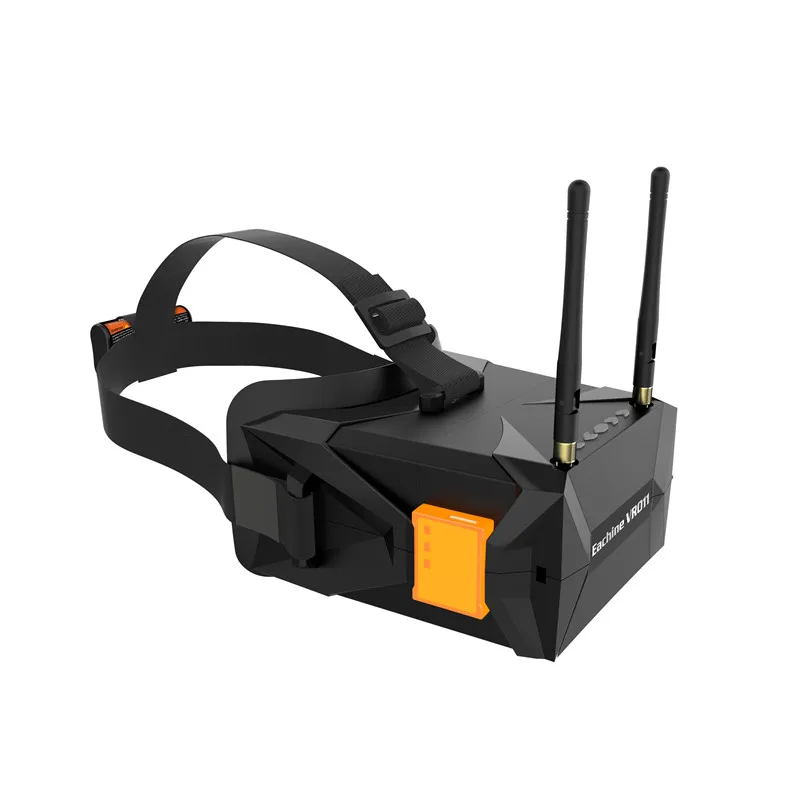

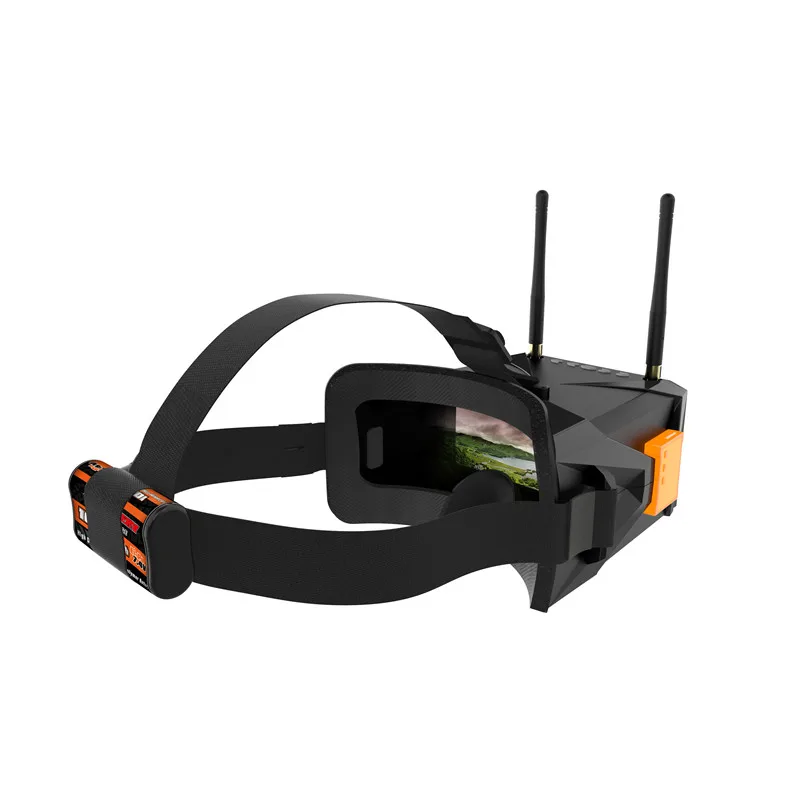

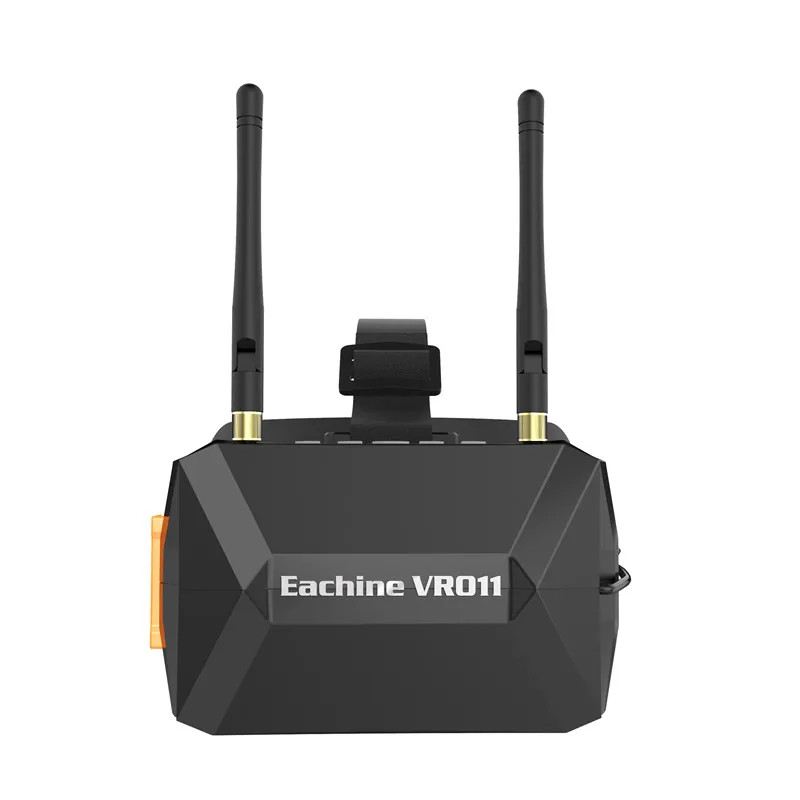

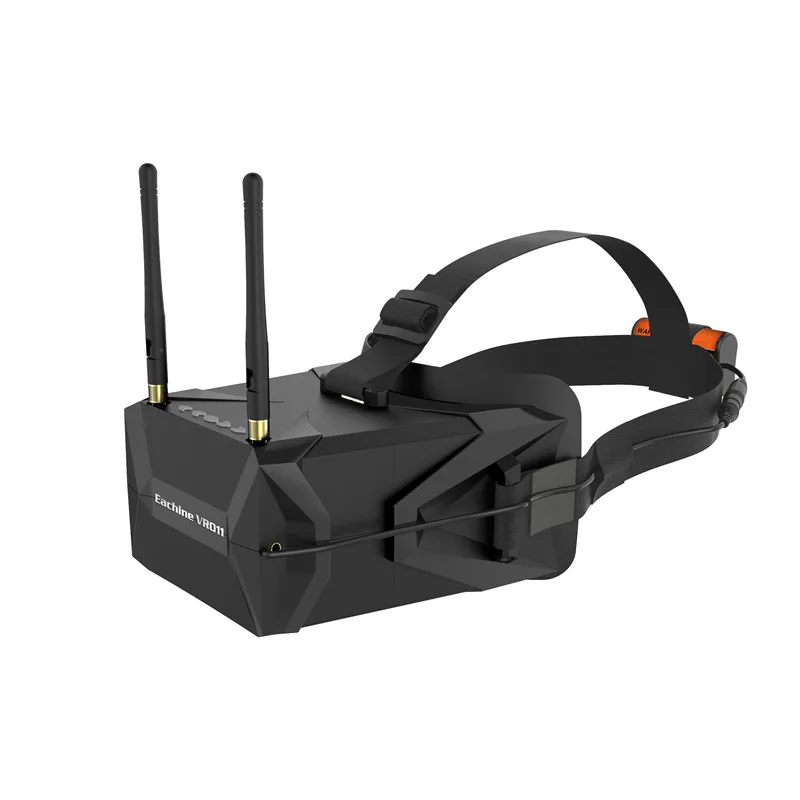

Item name: Eachine VR011 FPV Goggles
Frequency: 5.8GHz 40CH (RaceBand-)
Screen resolution: 800*480PX
Screen brightness: 500cd/m²
Voltage: 2s battery(7.4-8.4v)
Working current: 350-420mA
Reception sensitivity: -95dBM
Battery: 7.4v 1000mah Lipo battery
Working time: 1.5 hours
Net weight: 370gÂ
Screen weight: 204g
Straaght pole antenna weight: 6.3g
Whole size: 168*172.5*100mm(exclude antenna and antenna holder)
Screen size: 152*69.5*86.5mm(exclude antenna and antenna holder)
Receiver connector: RP-SMA male
Features:
1 x DVR( Optional )Screen brightness: 500cd/m²
Voltage: 2s battery(7.4-8.4v)
Working current: 350-420mA
Reception sensitivity: -95dBM
Battery: 7.4v 1000mah Lipo battery
Working time: 1.5 hours
Net weight: 370gÂ
Screen weight: 204g
Straaght pole antenna weight: 6.3g
Whole size: 168*172.5*100mm(exclude antenna and antenna holder)
Screen size: 152*69.5*86.5mm(exclude antenna and antenna holder)
Receiver connector: RP-SMA male

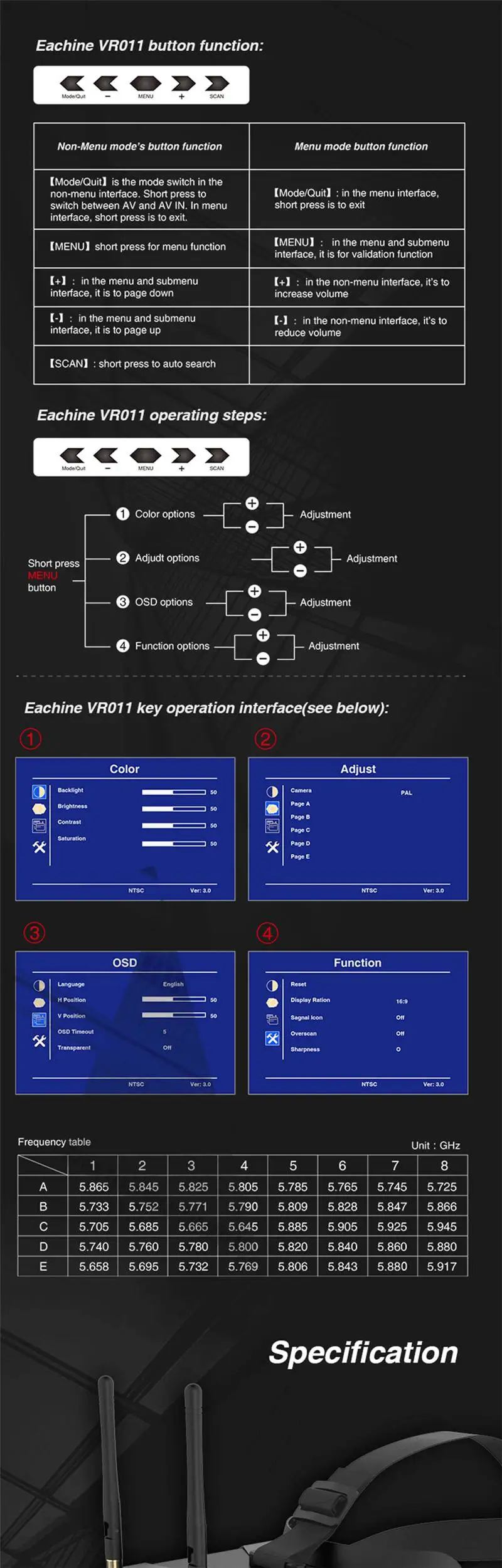

| Â Frequency Table(GHz) | ||||||||
| Frequency Bnad- A | 5.865 | 5.845 | 5.825 | 5.805 | 5.785 | 5.765 | 5.745 | 5.725 |
| Frequency Bnad- B | 5.733 | 5.752 | 5.771 | 5.79 | 5.809 | 5.828 | 5.847 | 5.866 |
| Frequency Bnad- C | 5.705 | 5.685 | 5.665 | 5.645 | 5.885 | 5.905 | 5.925 | 5.945 |
| Frequency Bnad- D | 5.740 | 5.760 | 5.780 | 5.800 | 5.820 | 5.840 | 5.860 | 5.880 |
| Frequency Bnad- E | 5.658 | 5.695 | 5.732 | 5.769 | 5.806 | 5.843 | 5.88 | 5.917 |
Features:

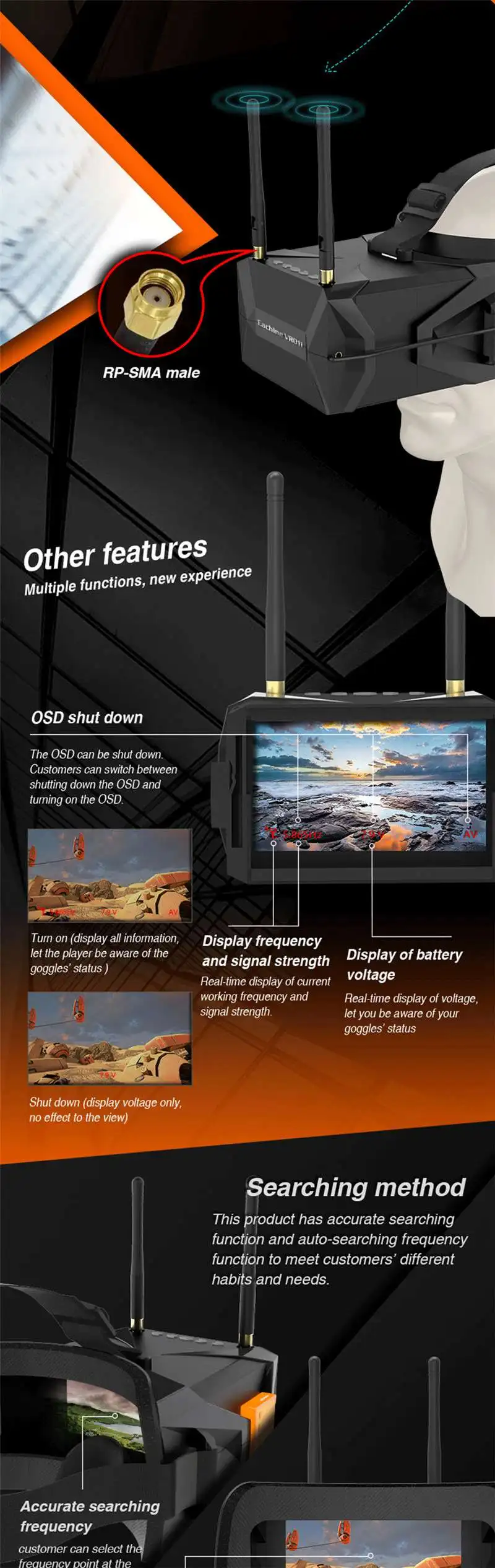

- Super transformable

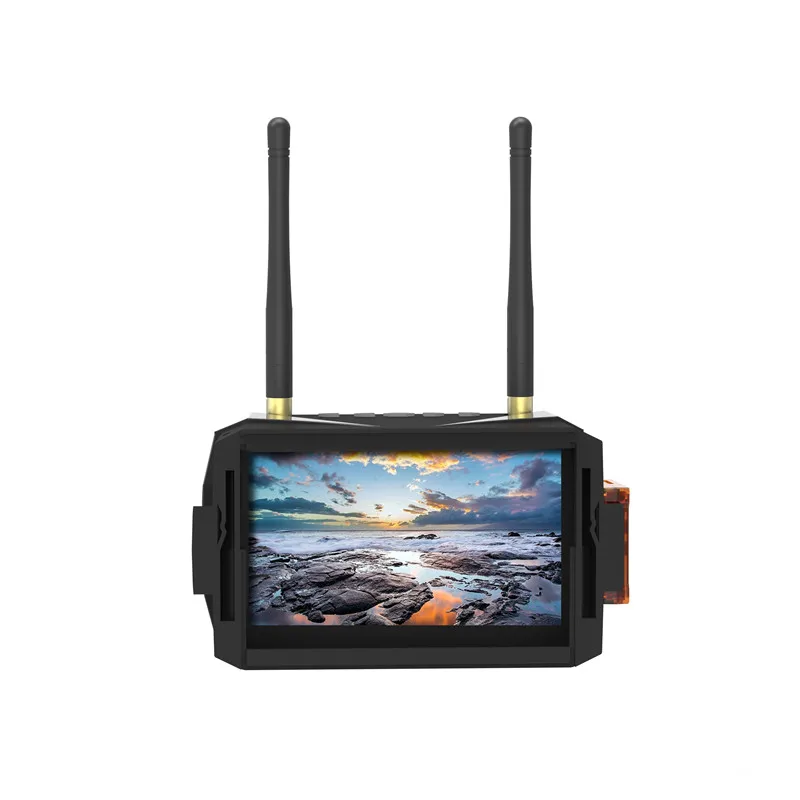

Disassemble the goggle and use it as a monitor,or put it on a tripod
It can be used as a monitor separately,or put it on a tripod
- External DVR optional
Meticulous design,free to choose,simply to operate and worry-free
- Dual reception
- Dual reception
Real-time transmission,more stable reception
- Searching method
This product has accurate searching function and auto-searching
frequency function to meet customers' different habits and needs
- Support video-in and audio-out
- Display frequency and signal strength
frequency function to meet customers' different habits and needs
- Support video-in and audio-out
- Display frequency and signal strength
Real-time display of current working frequency and signal strength
- OSD shut down
- 5 inch LCD display
- Multiple language options
- External battery,convenient for replacement
- Support PAL/NTSC switchable
- Save all settings from power failure

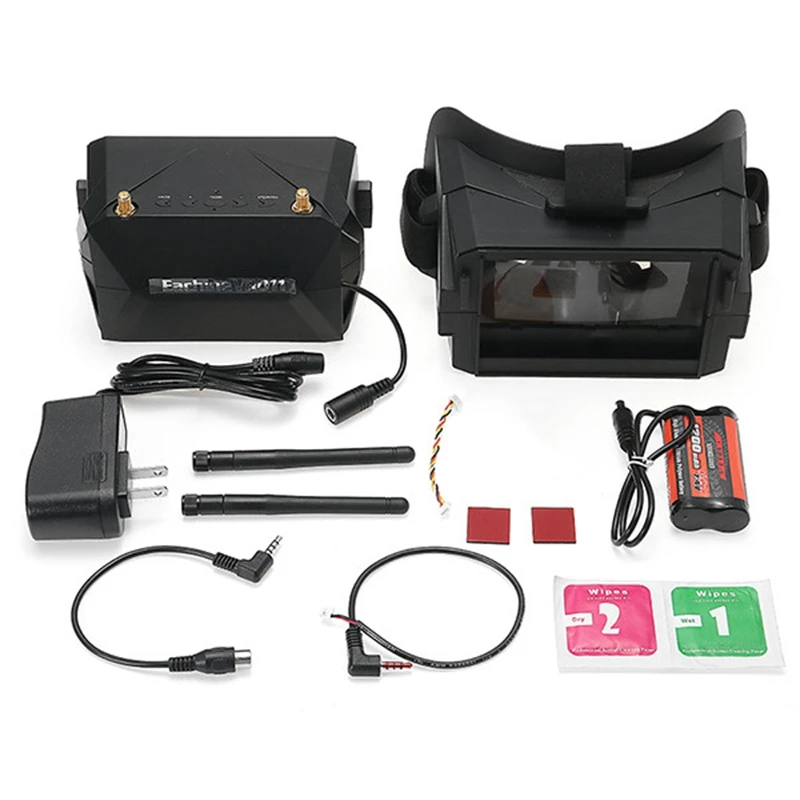

Package included:
1 x Eachine VR011 goggles
2 x Straight pole antennaÂ
1 x Manual
1 x 7.4v 1000mAh Lithium battery
1 x Charger
1 x Audio cable
2 x Clean cloth
- OSD shut down
- 5 inch LCD display
- Multiple language options
- External battery,convenient for replacement
- Support PAL/NTSC switchable
- Save all settings from power failure
Package included:
1 x Eachine VR011 goggles
2 x Straight pole antennaÂ
1 x Manual
1 x 7.4v 1000mAh Lithium battery
1 x Charger
1 x Audio cable
2 x Clean cloth
